Understanding Tubing Tolerances for Silicone and PVC/Plastic Tubing

When specifying silicone tubing, PVC tubing, or other plastic tubing products, dimensional tolerances play a critical role in performance, reliability, and product quality. Whether your application involves medical devices, pharmaceutical processing, food production, laboratories, or industrial fluid transfer, selecting the correct tubing tolerances helps ensure accurate flow rates, secure fitting connections, and long-term system performance.

This guide explains tubing tolerances, why they matter, how they differ between silicone and plastic tubing, and what to consider when specifying precision tubing for demanding applications.

What Are Tubing Tolerances?

Tubing tolerances refer to the allowable dimensional variation of tubing during the manufacturing process. Because tubing is produced through extrusion, curing, and cooling methods, minor dimensional variation is unavoidable. Tolerances define the acceptable range of variation for each measurement and ensure consistency across production runs.

The most common tubing dimensions that are controlled include:

• Inner Diameter (ID)
• Outer Diameter (OD)
• Wall Thickness
• Tube Length

Precision tubing tolerances are particularly important in applications where fluid transfer accuracy, pressure performance, and fitting compatibility are critical.

Why Tubing Tolerances Matter

Choosing the correct tubing tolerances directly impacts the performance, efficiency, and longevity of your system. Tight and consistent tubing tolerances help ensure:

• Accurate and repeatable flow rates
• Reliable pressure and vacuum performance
• Proper fit on barbed, push-fit, and compression fittings
• Effective sealing and leak prevention
• Consistency across manufacturing batches
• Compliance with medical, pharmaceutical, and food-grade standards

In regulated sectors such as medical devices, biotechnology, pharmaceuticals, and food processing, incorrect tubing tolerances can result in product failures, downtime, increased costs, and quality control issues.

Silicone Tubing Tolerances Explained

Silicone tubing is widely used because of its flexibility, temperature resistance, chemical resistance, and biocompatibility. However, the elastic nature of silicone affects its dimensional stability and tolerance range.

Typical Characteristics of Silicone Tubing

• Highly flexible and elastic
• Excellent temperature resistance
• Recovers shape after stretching
• Wider tolerances compared to rigid plastic tubing

Common Silicone Tubing Tolerances

Typical silicone tubing tolerances vary depending on tube size, wall thickness, and manufacturing methods:

• Inner Diameter (ID): ±0.05 mm to ±0.25 mm
• Outer Diameter (OD): ±0.10 mm to ±0.38 mm
• Wall Thickness: Typically less tightly controlled due to material flexibility

Key Considerations for Silicone Tubing

Because silicone tubing can stretch over fittings, slightly wider ID tolerances are often acceptable. However, in applications such as:

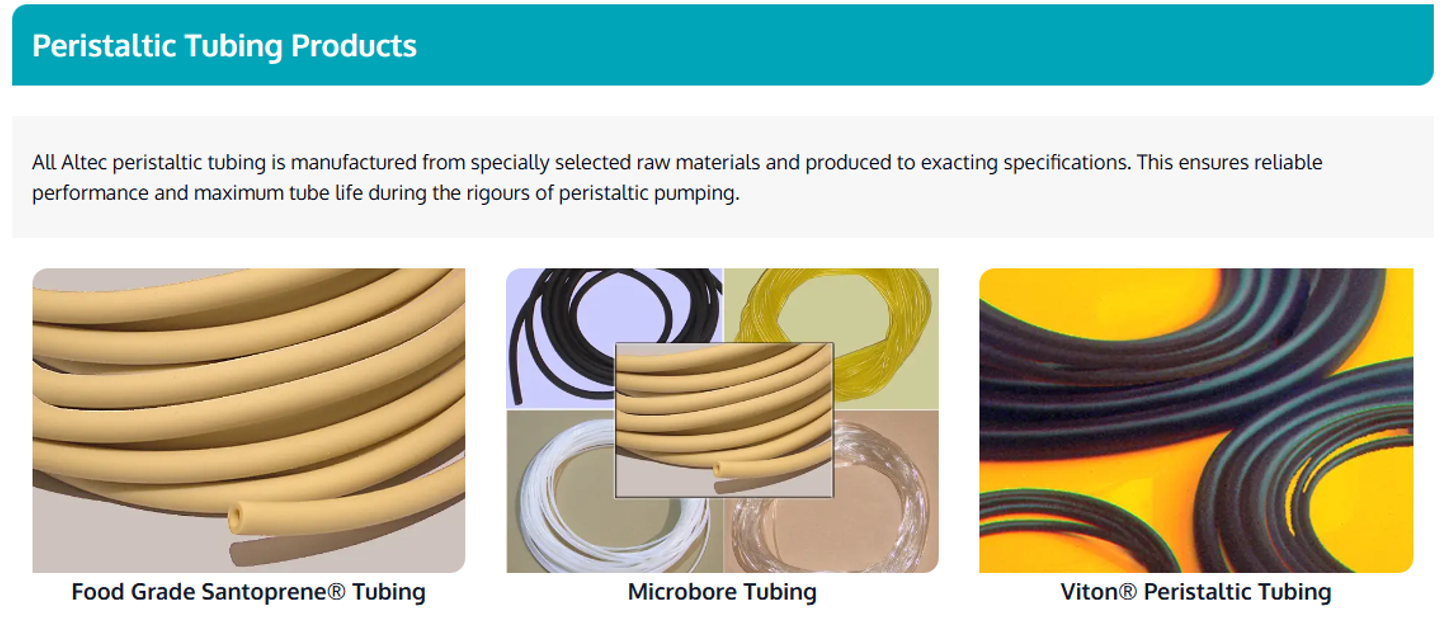

• Peristaltic pumps
• Medical fluid transfer systems
• Pharmaceutical processing
• Precision dosing equipment

tight outer diameter tolerances become essential for maintaining consistent flow rates, pump performance, and tubing lifespan.

PVC and Plastic Tubing Tolerances Explained

PVC tubing and other plastic tubing materials such as polyurethane, polyethylene, and fluoropolymers offer greater dimensional stability than silicone. These materials are commonly used in applications requiring tighter tolerances and more rigid tubing performance.

Typical Characteristics of Plastic Tubing

• Lower elasticity
• Higher rigidity
• Excellent dimensional stability
• More precise manufacturing tolerances

Common Plastic Tubing Tolerances

Depending on material type and tubing size, common plastic tubing tolerances include:

• Inner Diameter (ID): ±0.02 mm to ±0.13 mm
• Outer Diameter (OD): ±0.05 mm to ±0.25 mm
• Wall Thickness: More uniform and tightly controlled than silicone tubing

Key Considerations for Plastic Tubing

Plastic tubing relies heavily on dimensional accuracy for secure sealing and fitting retention. Because rigid materials are less forgiving than silicone, even small dimensional variations can affect:

• Push-fit connections
• Compression fittings
• Fluid sealing performance
• Pressure ratings
• Assembly consistency

Correct matching between tubing dimensions and fitting specifications is critical for optimal performance.

How Manufacturing Processes Affect Tubing Tolerances

Several manufacturing variables influence tubing tolerances during production, including:

• Extrusion die design
• Material viscosity and consistency
• Cooling and curing control
• Extrusion line speed
• Inline sizing systems
• Measurement technology

For high-precision tubing applications, manufacturers often use:

• Laser diameter measurement systems
• Closed-loop process controls
• Statistical Process Control (SPC)
• Optical comparator measurement systems

These technologies help maintain consistent tubing dimensions and ensure repeatable product quality across every production run.

At Altec Extrusions Ltd, optical comparators are used to measure tubing dimensions during production. This enables extremely tight tolerance control while generating SPC data for every manufacturing run, providing full traceability and dimensional consistency.

Why Precision Tubing Manufacturing Matters

In industries where fluid transfer accuracy, pressure performance, and product consistency are essential, precision tubing manufacturing can significantly improve operational reliability.

Tight dimensional control helps ensure:

• Better compatibility with fittings and connectors
• Predictable flow characteristics
• Reduced product variation
• Improved sealing performance
• Consistent pressure handling
• Enhanced quality assurance

For medical, pharmaceutical, laboratory, and food-grade applications, precision-manufactured tubing also supports validation requirements, regulatory compliance, and long-term product performance.

Choosing the Right Tubing Tolerance for Your Application

When selecting silicone tubing, PVC tubing, or custom plastic tubing, consider the following questions:

• Is accurate and repeatable flow rate essential?
• Will the tubing operate under pressure or vacuum?
• Does the tubing need to seal without clamps?
• Are medical, pharmaceutical, or food-grade standards required?
• Will the tubing stretch during installation?
• Is long-term dimensional stability important?

If your application requires high precision, it is often advisable to specify custom tubing tolerances rather than relying solely on standard catalogue tubing sizes.

Frequently Asked Questions About Tubing Tolerances

What are tubing tolerances?

Tubing tolerances are the acceptable dimensional variations in a tube's inner diameter, outer diameter, wall thickness, and length during manufacturing.

Why are tubing tolerances important?

Tubing tolerances affect flow rates, pressure performance, fitting compatibility, leak prevention, and overall system reliability.

Does silicone tubing have wider tolerances than PVC tubing?

Yes. Silicone tubing is more flexible and elastic, which typically results in wider tolerances than rigid PVC and other plastic tubing materials.

What industries require tight tubing tolerances?

Medical, pharmaceutical, laboratory, biotechnology, food processing, and industrial manufacturing sectors often require tight tubing tolerances.

Can tubing be manufactured to custom tolerances?

Yes. Custom extrusion processes can produce tubing with tighter dimensional controls to meet specific application requirements.

How do tubing tolerances affect flow rates?

Variations in internal diameter can impact fluid volume and flow consistency, particularly in precision dosing systems, laboratory equipment, and pump applications.

Understanding silicone tubing tolerances and PVC tubing tolerances is essential when selecting tubing for medical, pharmaceutical, laboratory, food-grade, and industrial applications. While silicone tubing offers exceptional flexibility and ease of installation, PVC and other plastic tubing materials provide greater dimensional stability and tighter manufacturing tolerances.

By specifying the correct tubing dimensions and tolerance requirements, manufacturers can improve system reliability, maintain consistent performance, reduce installation issues, and ensure long-term product quality.
